DCC XYZ All-in-one

Product > MaxV

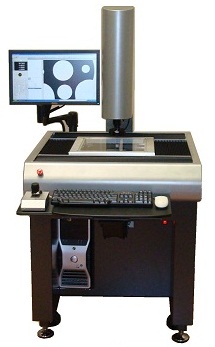

MaxV1212-AV DCC Measuring Machine


Computer Control XYZ Precision Measurement

Model
MaxV1212AV: 12 x 12 x 6 inch
Motorized and computer control XYZ

Encoder
0.0001 mm linear scale on XYZ.

Optics
6X motorized zoom has optical zoom range 0.7X - 4.2X, total zoom range 20X - 120X.

Camera
3M (2048 x 1536) color

Illumination
LED ring, coaxial and back lighting, computer control adjustable.

Software
DMP4000

MaxV1212AV is a video based 3-axis, computer control, motorized measuring systems. It has high stage resolution. 3M digital camera captures rich color and sharp image and it improves the sub-pixel accuracy and throughput.

Other features include programmable lighting and software to support multiple programmable steps and maintain the magnification and calibrations.

The DMP4000 software has auto edge detection with sub-pixel resolution. It provides full CMM measuring capability. The stage and video mapping capabilities greatly improve the system measurement accuracy.

Computer
Dell mini-tower & 22" LCD monitor. Windows 7 / 8 Professional

Dimension
MaxV1212-AV: 32 (W) x 40 (D) x 70 (H) inch

Options

Optics
5X or 10X objective, up to 1200X toltal magnification.

Laser
Precision height measurement and surface profiling
