Digital Precision Corp

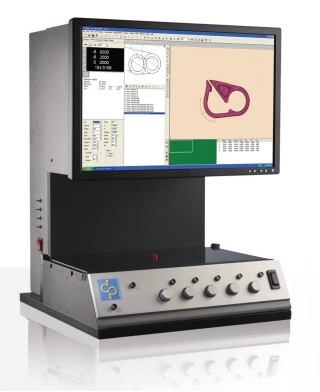

OneTouch-LV Digital Measuring Scope

Model
OneTouch-LV
Very large field of view. Programmable and push button to run.

Optics
Telecentric lens with 0.16X optical magnification.

Camera
3M (2048 x 1536) color

Illumination
LED ring and back lighting, computer control.

Software
DMP3000

Computer
Dell small form & 20" LCD monitor. Windows 7 / 8 Professional

OneTouch-LV is a large view FOV optical metrology system to measure and inspect small size (typical size 1 inch) part overall dimension. The system features Large FOV telecentric optics, high Resolution digital camera, unique lighting and powerful DMP3000 software in a compact station.

The system is quick to setup, easy to operate, low cost to own and result is precise. You can use the software general purpose functions to create program and measure complicate part, or use dedicate AutoCheck functions for immediate measurement. Either way, simply push a button to start the measurement.

Dimension
19 (W) x 18 (D) x 25 (H) inch

Options

Optics
Different telecentric lens or zoom lens.
